SereneDrains 16" Linear Shower Drain – Brushed Stainless Steel, Wind Design

Stop Fighting Standing Water and Dated Drains

Pooling water and clogged, unattractive drains ruin an otherwise beautiful bathroom. The SereneDrains 16" Wind Design Linear Drain pairs a brushed stainless steel finish with dependable drainage performance – giving your shower the seamless, spa-like finish it deserves.

Key Features

• 16-gauge 304 stainless steel body, channel, and grate – provides excellent resistance to corrosion and rust
• Brushed stainless steel finish – a soft, matte sheen that helps minimize the look of water spots and fingerprints
• Wind Design grate pattern – a flowing, decorative look that elevates any shower floor
• Flow rate – 6.3 GPM at the shower entrance, 9.5 GPM against the wall
• No-leveling-feet design – flange rests directly on the floor edge for a simpler, more stable install
• Rounded, folded frame (not welded) – twice the strength of a standard edge, smooth underfoot
• Removable grate – lifts out in seconds for effortless cleaning

Specifications

Flow rate can vary depending on shower-floor slope, plumbing configuration, and overall drainage system.

Installation

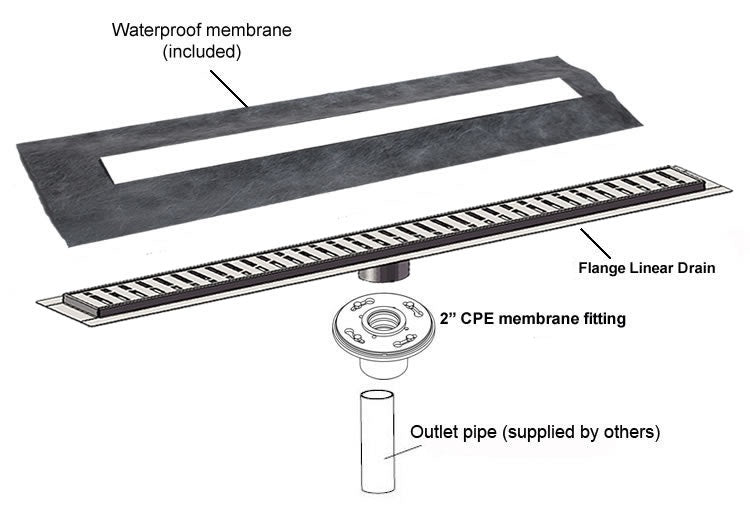

Compatible with hot-mop, liquid-applied, sheet, and vinyl waterproofing systems. The 2" central vertical outlet is designed for connection to a standard 2" drain system. Designed for straightforward installation. Professional installation is recommended for shower waterproofing, plumbing connections, and floor slope.

What's Included

• Brushed stainless steel channel body
• Wind Design brushed stainless steel grate
• Drain rubber fitting
• Free stainless steel hair trap
• Drain puller key
• Waterproofing membrane sheet around the drain flange
• Installation instructions

Why Choose This Drain

• Fully welded, leak-tested bodies with zero plastic components
• Distinctive Wind Design pattern in a brushed stainless steel finish, offering a decorative alternative to standard linear drains
• Stronger folded frame that resists bending better than welded-edge competitors
• Rectangular profile with straight edges can simplify tile layout compared to round drains

Design & Aesthetics

The Wind Design grate brings a subtle sense of motion to the shower floor, while the brushed stainless steel finish blends seamlessly with modern tile work – geometric elegance with a clean, understated tone.

Available Lengths

This drain is available in 16", 24", 30", 35", 39", 47", and 59". Choose the length based on your finished shower dimensions, tile layout, and installation requirements.

Applications

Well suited for:

• Walk-in showers
• Curbless shower designs
• Barrier-free shower layouts
• Residential bathrooms
• Hotel bathrooms
• Other wet-area applications

FAQ

Is this drain compatible with tile inserts?

No – this is a grate-style drain with the Wind Design pattern visible on top. If you prefer a drain that blends with your tile, we also carry a tile insert linear drains version that lets you tile directly over the cover for a seamless, invisible look.

What's the difference between a linear drain and a standard center drain?

A linear drain runs along one edge of the shower instead of sitting in the middle, which allows for a single-slope floor (sloped in one direction only) instead of a four-way slope. This makes tile cutting easier, creates a more modern look, and is a popular choice for curbless and walk-in showers.

Will a linear drain smell or trap odors?

No, as long as it's installed correctly. Like any drain, it needs a proper P-trap in the plumbing beneath it to hold water and block sewer gas. The drain itself won't cause odor issues – that comes down to the trap and venting in your plumbing setup.

Can this be installed in a retrofit or existing shower, not just new construction?

Yes – as long as the existing plumbing has a 2" outlet. The main thing to check is depth: linear drains sit deeper than standard center drains, so there needs to be enough clearance beneath your shower floor for the drain body. We recommend having a plumber confirm your rough-in depth (the distance from the subfloor to the center of the waste pipe) before you order.

How do I clean and maintain the finish?

Lift out the removable grate and hair trap, rinse with mild soap and water, and wipe with a soft cloth. Avoid abrasive cleaners or scouring pads, which can dull the brushed stainless steel finish over time.

Does the brushed stainless steel finish show water spots and fingerprints?

The brushed finish helps disguise fingerprints and minor water spots better than highly polished surfaces. For routine maintenance, clean the grate with mild soap and water and dry with a soft cloth.

Guarantee

Fully welded and leak-tested before shipping. In stock, ready to ship – free shipping plus same-day dispatch.

SereneDrains linear shower drains include a 1-year limited warranty against manufacturing defects in the drain itself. The warranty does not cover labor, removal, installation, reinstallation, or related costs.
