SereneDrains 35 Inch Linear Shower Drain, Luxurious Linear Wedge Design in Brushed Nickel, Free Hair Trap Included
Net Size 35" 3/8" x 2 3/4" (900mm) | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
In Stock, Ready to Ship. Free Shipping
Available In: 16", 24", 30", 35", 39", 47", 59"

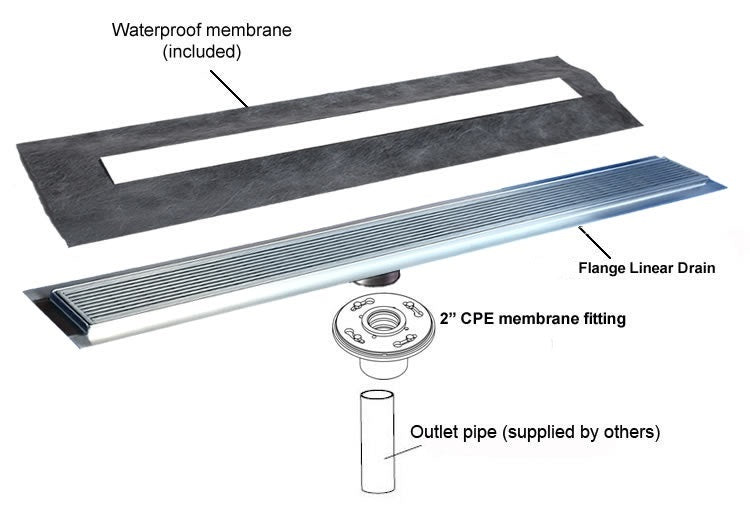

Drain Includes: stainless steel channel body & grate, puller key, rubber fitting, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.
SereneDrains Linear Wedge Design Drains in a brushed finish offer a modern aesthetic with high performance, making them perfect for any shower or bathroom. These premium designer linear drains elevate your space with an elegant look while ensuring efficient water drainage. The removable tray simplifies maintenance, keeping your shower clean and fresh.
Why Choose SereneDrains: Our linear shower drain is constructed from durable 6-gauge (5mm) 304 stainless steel, including the flange, channel, and grate, ensuring superior protection against corrosion and rust. The Flange Body Edge is designed for easy installation with all types of waterproofing materials, such as 'Hot-Mop,' liquid membranes, sheet membranes, and vinyl waterproofing. Additionally, the shower drain is built without leveling feet, offering greater stability and simplifying installation by allowing the flange to rest directly on the floor edge. The frame is rounded (folded, not welded), making it twice as strong while ensuring a smooth, comfortable touch underfoot.
Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans).
Main Features:
Stainless steel brushed finish.
Shower Grate is grade 6 gauge (5mm) 304 stainless steel.
Superior quality laser-cut electropolish finish.
Bodies are fully welded and leak-tested before dispatch.
2-inch diameter central vertical outlet.
Designed to be installed into any 2" shower drain flange.
Compatible with tiles up to 10mm in depth (14mm lip).
Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.
Pre-slope channel. Channel width: 2 3/4" (70 mm).
Foot friendly grate with anti-slip nodules.
Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.
