SereneDrains 35" Matte Black Tile Insert Linear Shower Drain

SereneDrains 35-Inch Matte Black Tile-In Hidden Linear Shower Drain

Premium Concealed Drainage | Free Hair Trap & Free Shipping Included

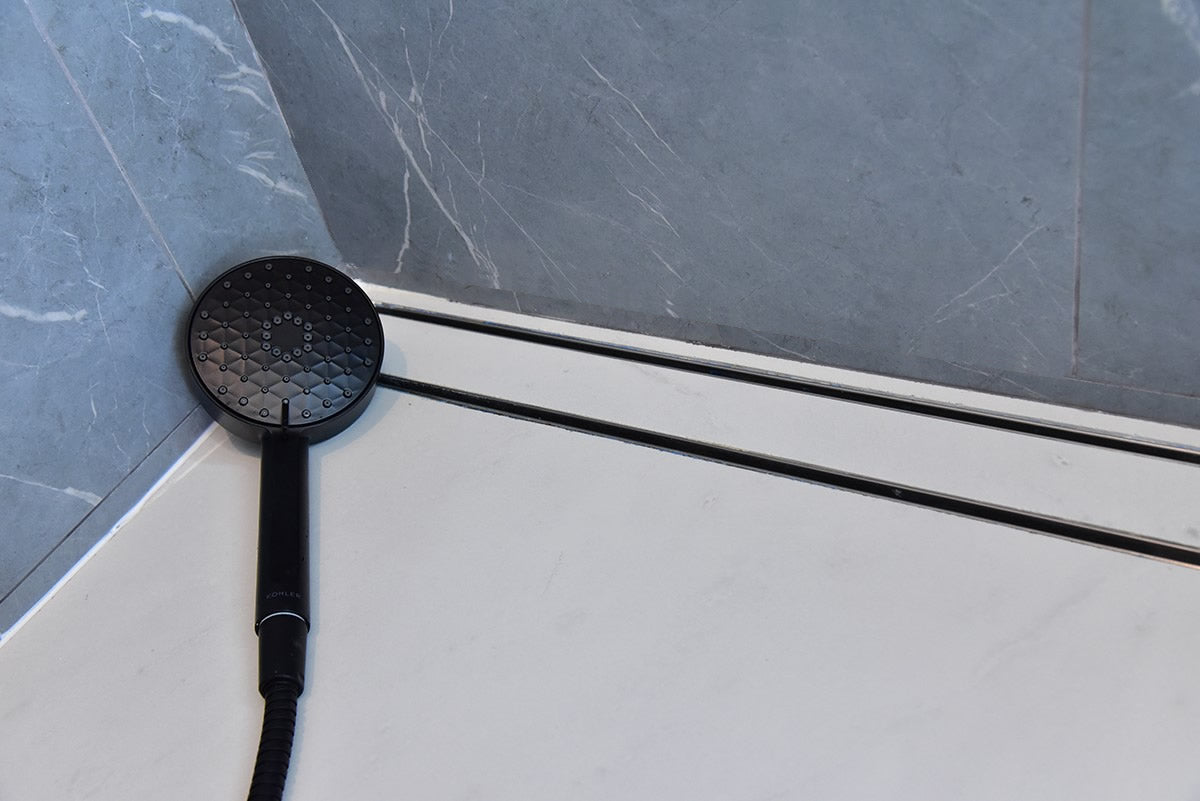

The SereneDrains 35-Inch Matte Black Tile-In Linear Shower Drain installs completely flush with your floor design. Ideal for a curbless shower layout, you place your matching flooring tile directly into the tray to camouflage the drain cover. This creates a seamless wetroom look that eliminates bulky hardware borders without slowing down water flow. Built with an ultra-low profile for standard tile or custom mosaics, the 35-inch channel includes a removable tray for quick cleaning.

Dimensions & Sizing

• Net Size: 35 3/8" x 2 3/4" (900mm)
• Overall Size: 37.01" x 4 3/8"
• Intake Area: 20.03 sq. in.
• Outlet Diameter: 2" central vertical outlet (fits any standard 2" shower drain flange)
• Tile Compatibility: Fits tiles up to 10mm in depth (14mm lip). Sized to match standard 1/2", 1", 2", and 4" tiles perfectly without custom cutting.

Why Choose SereneDrains?

• Heavy-Duty Construction: Built entirely without plastic from 16-gauge 304 stainless steel (including the flange, channel, and grate) for absolute protection against corrosion and rust.
• Pro-Level Stability: Engineered without leveling feet. The flange rests directly on the subfloor edge, providing far greater stability and a faster installation.
• Rounded Safety Frame: The frame is folded rather than welded, making it twice as strong and ensuring a completely smooth, premium touch underfoot.
• Universal Waterproofing: The built-in flange edge integrates flawlessly with Hot-Mop, liquid membranes, sheet membranes, and vinyl waterproofing systems. Includes a bonus waterproofing membrane sheet around the flange.

What's Included in the Box

• Stainless steel channel body & tile-insert grate
• Stainless steel debris basket / hair trap
• Grate puller key
• Waterproofing membrane sheet flange surround
• Step-by-step installation instructions

Technical Specifications & Performance

• Finish: Premium laser-cut electropolish Matte Black finish.
• Integrity: All drain bodies are fully welded and rigorously leak-tested before dispatch.
• Pre-Sloped Channel: Built-in slope ensures rapid water transit and prevents pooling. Channel width: 2 3/4" (70 mm).
• High Capacity Flow Rate:
  • Installed at the shower entrance: 6.3 GPM (0.4 l/s)
  • Installed against the wall: 9.5 GPM (0.6 l/s)
• Versatile Applications: Perfect for residential showers, baths, balconies, upscale hotel rooms, gyms, and spas. Fully ADA-compliant for barrier-free walk-in floor plans and wheelchair access.

Store Policies & Support

• Availability: In Stock & Ready to Ship.
• Shipping: 100% Free Shipping included.
• Return Policy: 30-day return policy. Money-back guarantee.
• Need Parts? We supply matching plumbing parts and accessories for drains, including ABS, PVC, and Cast Iron drain flanges.
• Discover more about the architectural elegance of our line by reading our article on luxury shower drains.
• Contact us directly for bulk contractor and commercial quantity discounts.
