47 Inch Polished Chrome Linear Shower Drains, Broken Lane Design by SereneDrains

SereneDrains 47 Inch Linear Shower Drain, Polished Stainless Steel, Broken Lane Design, Free Hair Trap Included

Tired of clogged drains, outdated grates, and showers that just don't look finished? The SereneDrains 47 Inch Linear Shower Drain features a decorative Broken Lane grate in a beautiful polished stainless steel finish, combining modern bathroom design with practical drainage performance. Constructed from 304 stainless steel, this 47 inch linear shower drain is designed for tiled shower floors and is well suited for walk-in, curbless, and barrier-free shower applications.

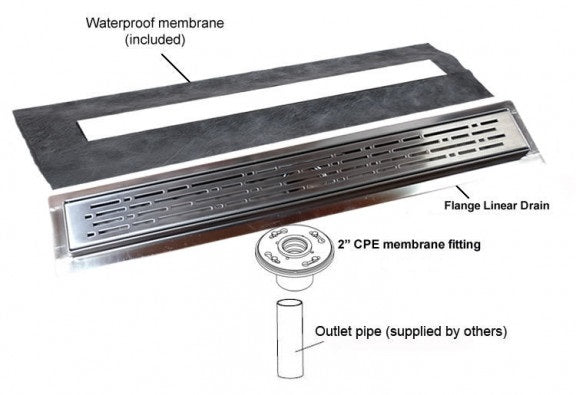

The removable grate provides easy access for cleaning, while a free stainless steel hair trap helps collect hair and debris before it enters the plumbing. The drain also includes a rubber fitting, puller key, waterproofing membrane sheet, and installation instructions.

Broken Lane Design for Modern Showers

The distinctive Broken Lane pattern gives this decorative shower drain a contemporary appearance while maintaining an open drainage surface. The polished stainless steel finish provides a bright, reflective look that coordinates naturally with stainless steel shower fixtures and other bathroom hardware.

Its rectangular shape provides straight edges that can make tile layout easier than working around a traditional round shower drain. The drain is designed to work with common tile sizes, including 1/2", 1", 2", and 4" tiles, and accommodates tile up to 10 mm in depth with a 14 mm lip.

Durable 304 Stainless Steel Construction

The SereneDrains Broken Lane linear shower drain is constructed from 304 stainless steel. Drain bodies are fully welded and leak-tested before shipment.

The grate is made from 16-gauge 304 stainless steel and finished in polished stainless steel. The rounded, folded frame creates a smooth finished edge, and the drain is designed without plastic components.

2-Inch Central Outlet and Pre-Sloped Channel

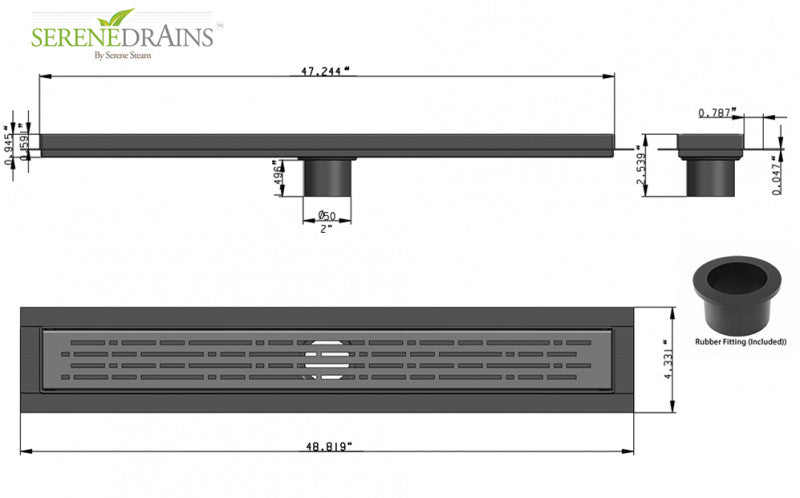

The 47-inch model features a 2-inch central vertical outlet, a 2 3/4-inch (70 mm) channel, and an intake area of 27.72 sq. in.

The pre-sloped channel helps direct water toward the outlet, with flow rates of:

• 6.3 GPM (0.4 L/s) at the entrance of the shower
• 9.5 GPM (0.6 L/s) against the wall

Actual drainage performance can vary depending on the shower-floor slope, plumbing configuration, and complete drainage system.

The flange body is designed for use with common shower waterproofing systems, including:

• Hot-mop waterproofing
• Liquid-applied membranes
• Sheet waterproofing membranes
• Vinyl waterproofing systems

Easy Cleaning

The removable Broken Lane grate provides access to the drainage channel for routine cleaning. The included stainless steel hair trap can be removed and cleaned as needed to help collect hair and debris before they enter the plumbing.

What's Included

Your SereneDrains 47 Inch Broken Lane Linear Shower Drain includes:

• Stainless steel channel body
• Broken Lane stainless steel grate
• Drain rubber fitting
• Free stainless steel hair trap
• Drain puller key
• Waterproofing membrane sheet around the drain flange
• Installation instructions

47-Inch Linear Shower Drain Specifications

Available Lengths

The SereneDrains Broken Lane linear shower drain collection is available in:

16", 24", 30", 35", 39", 47", and 59".

Select the appropriate drain length based on the finished shower dimensions, tile layout, and installation requirements.

Applications

The SereneDrains Broken Lane linear shower drain is designed primarily for shower and bathroom applications and can be used in a variety of residential and commercial wet-area projects, including:

• Walk-in showers
• Curbless shower designs
• Barrier-free shower layouts
• Residential bathrooms
• Hotel bathrooms
• Gym and commercial shower areas
• Other suitable wet-area applications

Why Choose the SereneDrains Broken Lane Linear Shower Drain?

• Distinctive Broken Lane design with a bright, reflective polished stainless steel finish
• Fully welded and leak-tested before shipment
• No plastic components
• Removable grate for convenient access to the drainage channel
• Straight rectangular profile can simplify tile layout compared with round drains
• Compatible with common waterproofing methods, including hot-mop, liquid-applied, sheet membrane, and vinyl systems
• Multiple length options for different shower layouts

1-Year Limited Warranty

SereneDrains linear shower drains include a 1-year limited warranty against manufacturing defects in the drain itself. The warranty does not cover labor, removal, installation, reinstallation, or related costs.
