SereneDrains 72 Inch Tile Insert Linear Shower Drain, Brushed Stainless Steel, Free Hair Trap Included

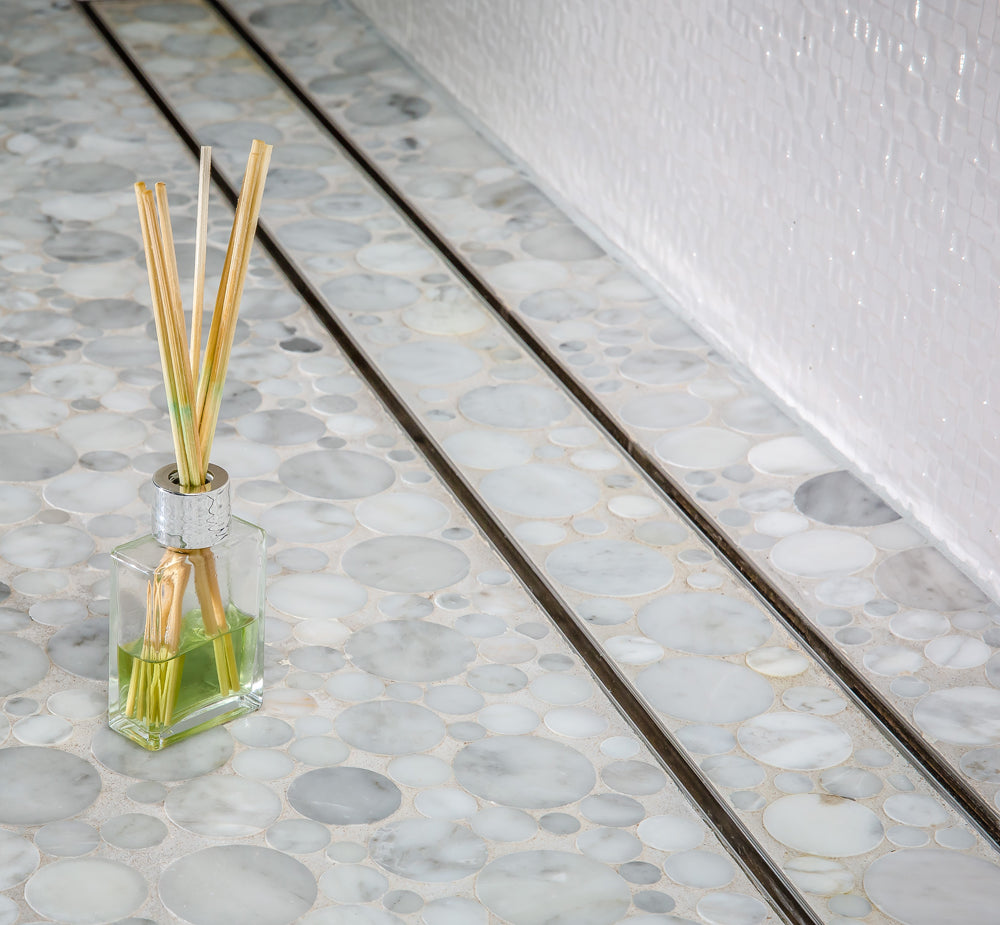

The Tile Insert shower drain is designed to camouflage the drain with the same tile you are installing on the shower floor. With this luxury tile-in drain design, the floor tile extends right over the drain, making it nearly invisible.

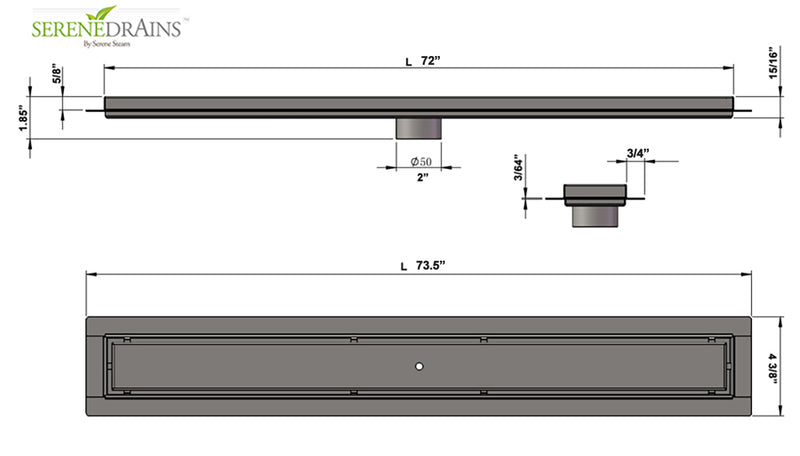

Net Size 72" x 2 3/4" | Overall Size 73.5" x 4 3/8" (1828mm) | Intake sq. in: 31.67
Drain Includes: stainless steel channel body & grate, puller key, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.
Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans)
Main Features:
Stainless steel brushed nickel finish.
Superior quality laser-cut electropolish finish.
Bodies are fully welded and leak-tested before dispatch.
2-inch diameter central vertical outlet.
Designed to be installed into any 2" shower drain flange.
Compatible with tiles up to 10mm in depth (14mm lip).
Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.
Pre-Slope channel. Channel width: 2 3/4" (70 mm).
Drain grate is 16-gauge 304 stainless steel.
Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.
SereneDrains tile-in linear drains offer a contemporary and aesthetically pleasing solution for shower and bathroom designs. These drains create the illusion of seamlessly blending into the floor, contributing to a sleek and minimalist appearance. The tray's easy removal facilitates straightforward maintenance and cleaning, ensuring a hassle-free experience. Constructed from 16-gauge 304 stainless steel, the body and grate of this ready-to-tile linear floor drain not only enhance the overall appeal but also provide durability. The flange body edge is thoughtfully designed to be compatible with various waterproofing methods, making it a versatile choice suitable for any bathroom design and construction. Visualize your stunning new shower with this tile insert linear drain seamlessly blending with the colors and patterns of your preferred bathroom tiles or mosaic. With the low-profile design of this drain, the beauty of your bathroom's tiles is accentuated, creating a cohesive and visually striking bathroom aesthetic.
