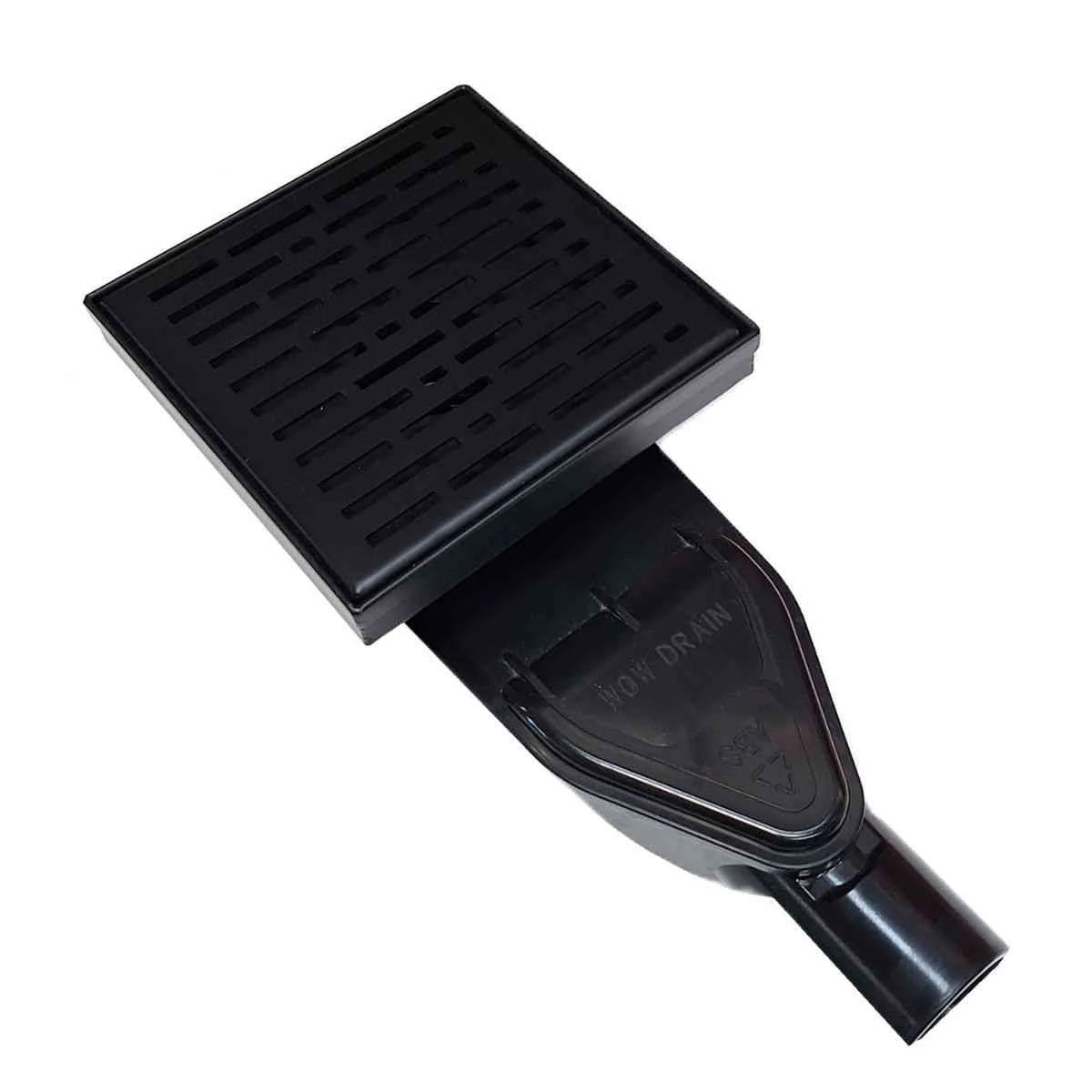

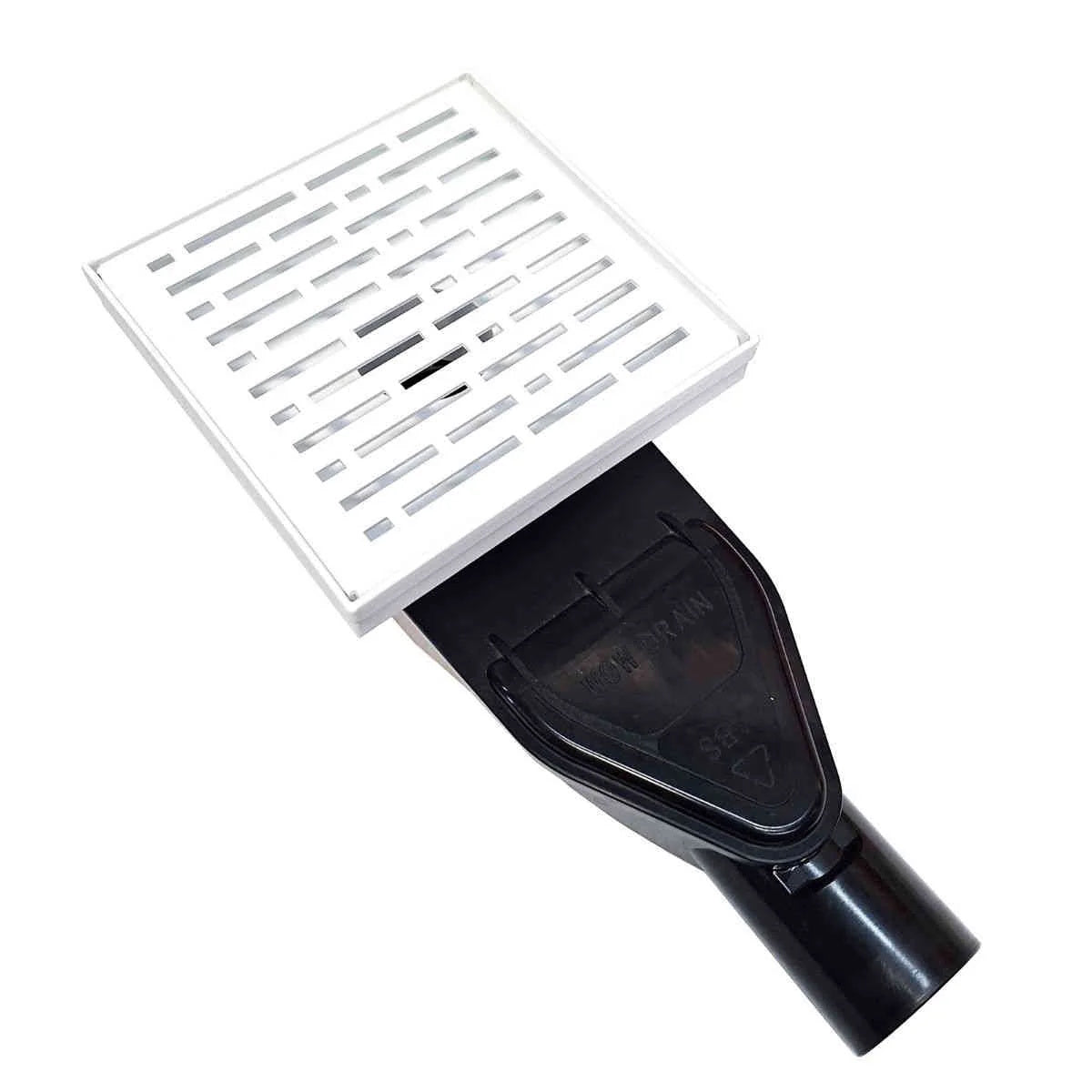

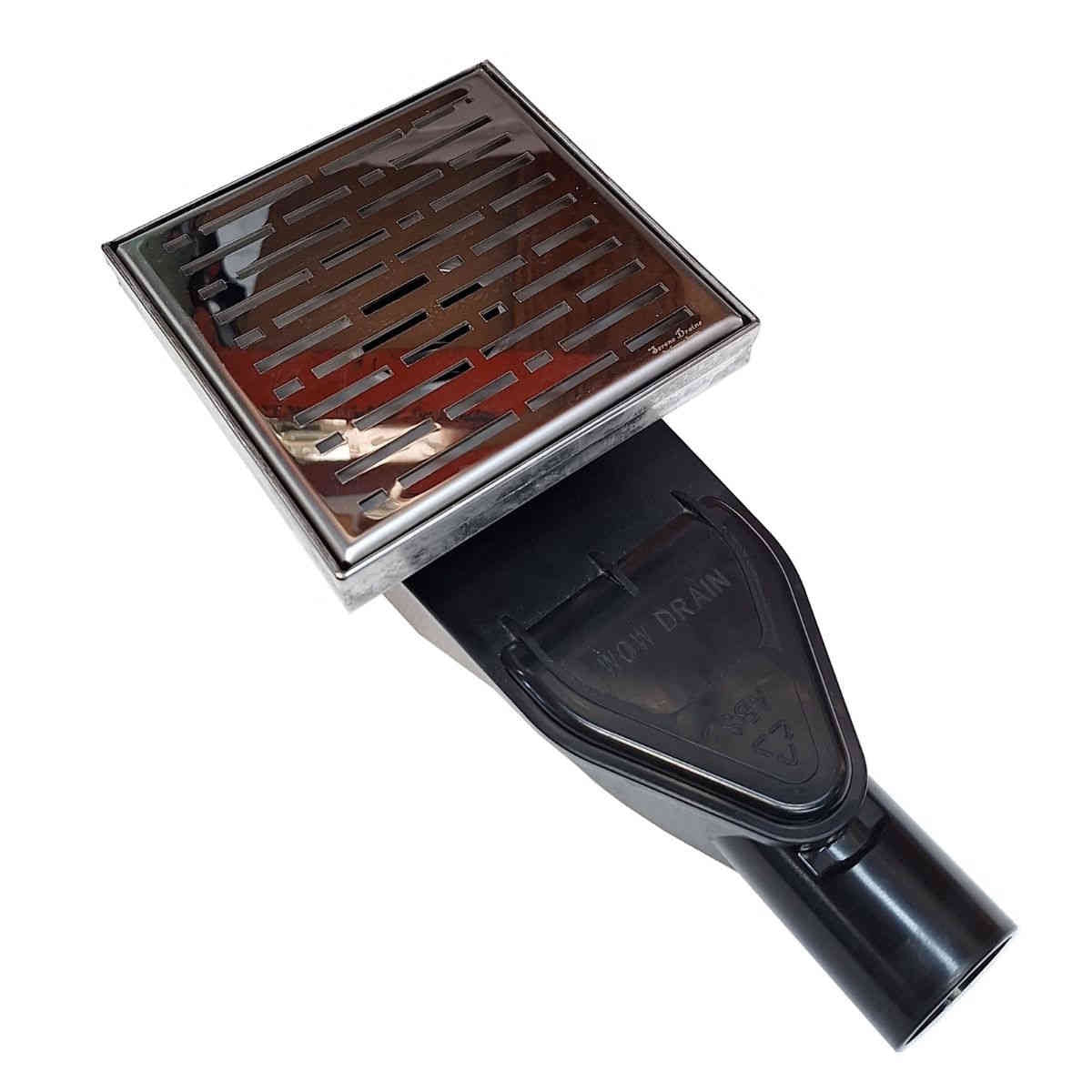

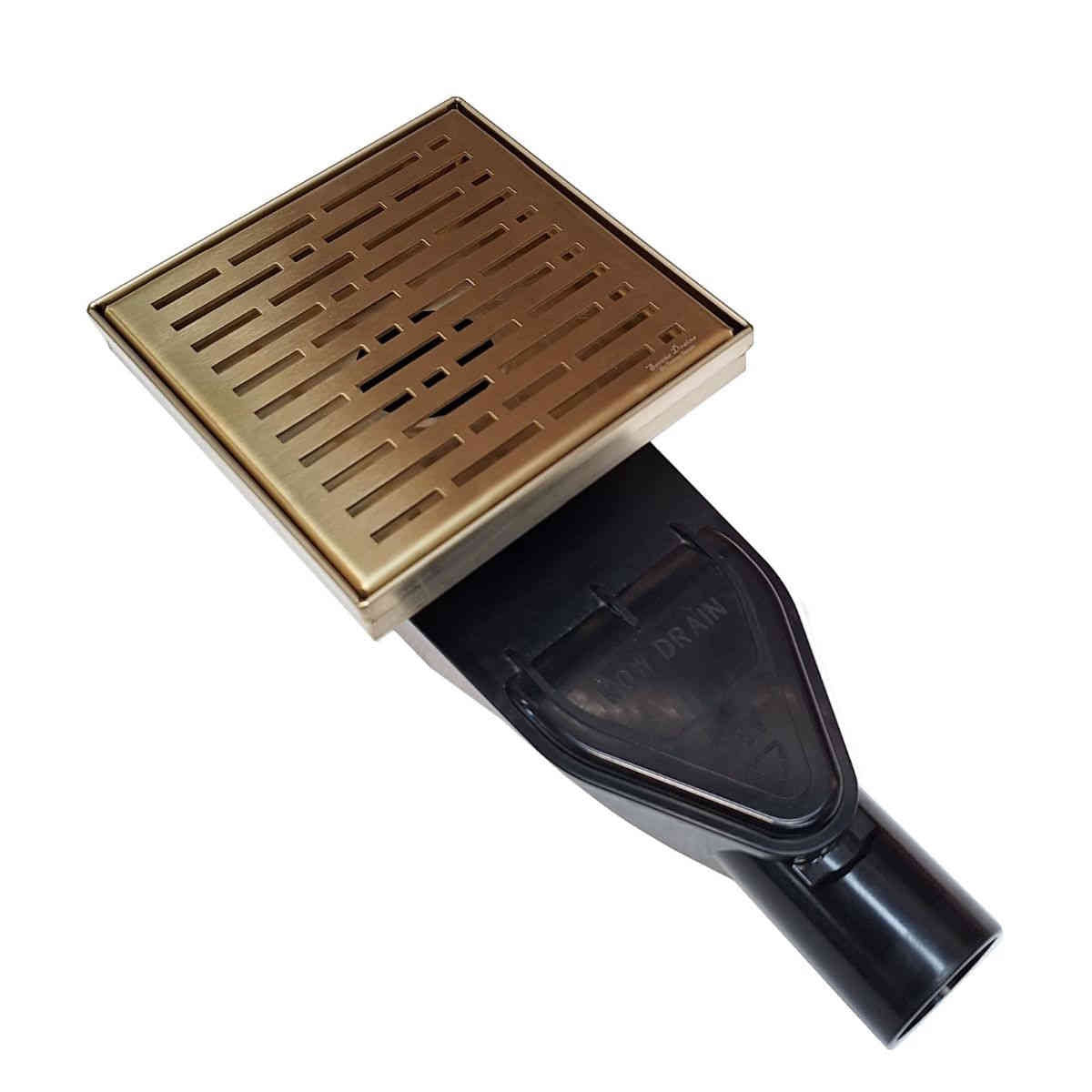

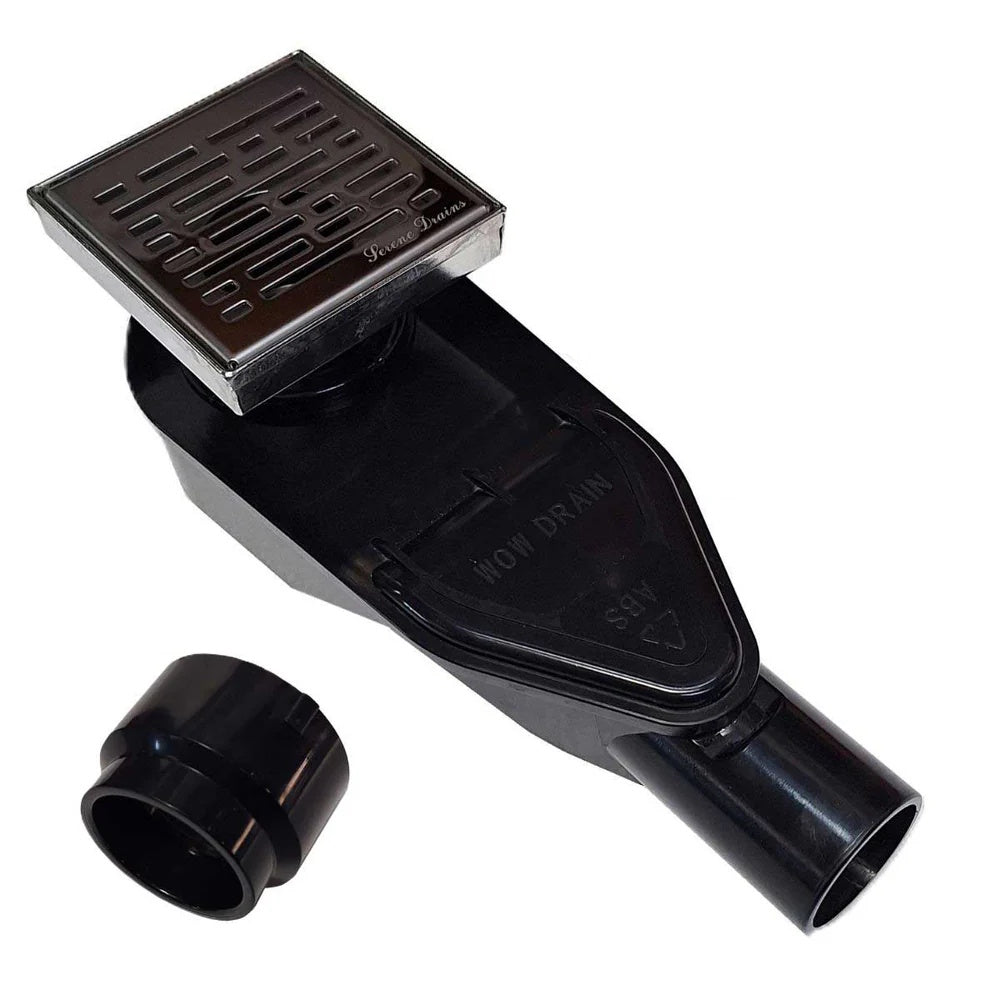

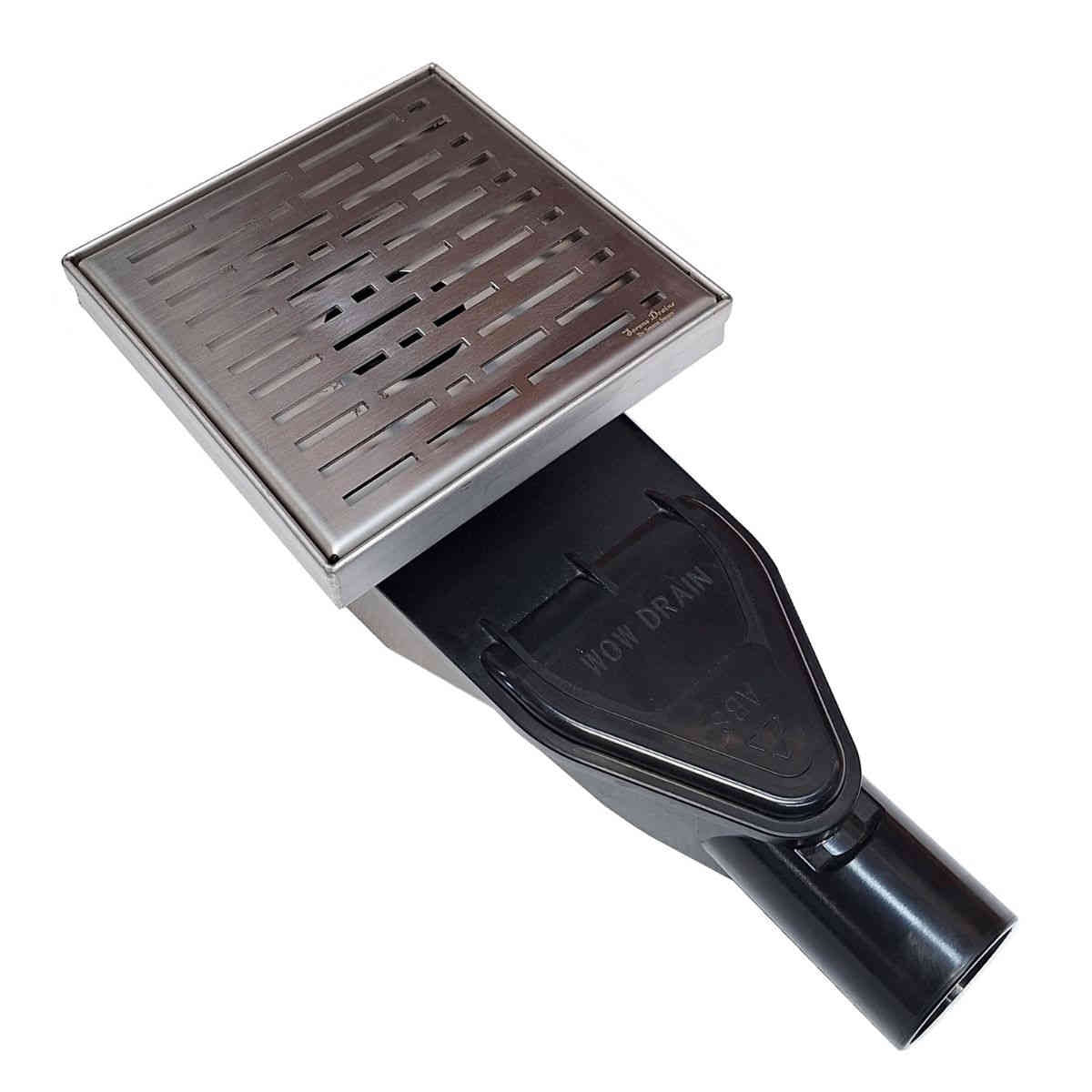

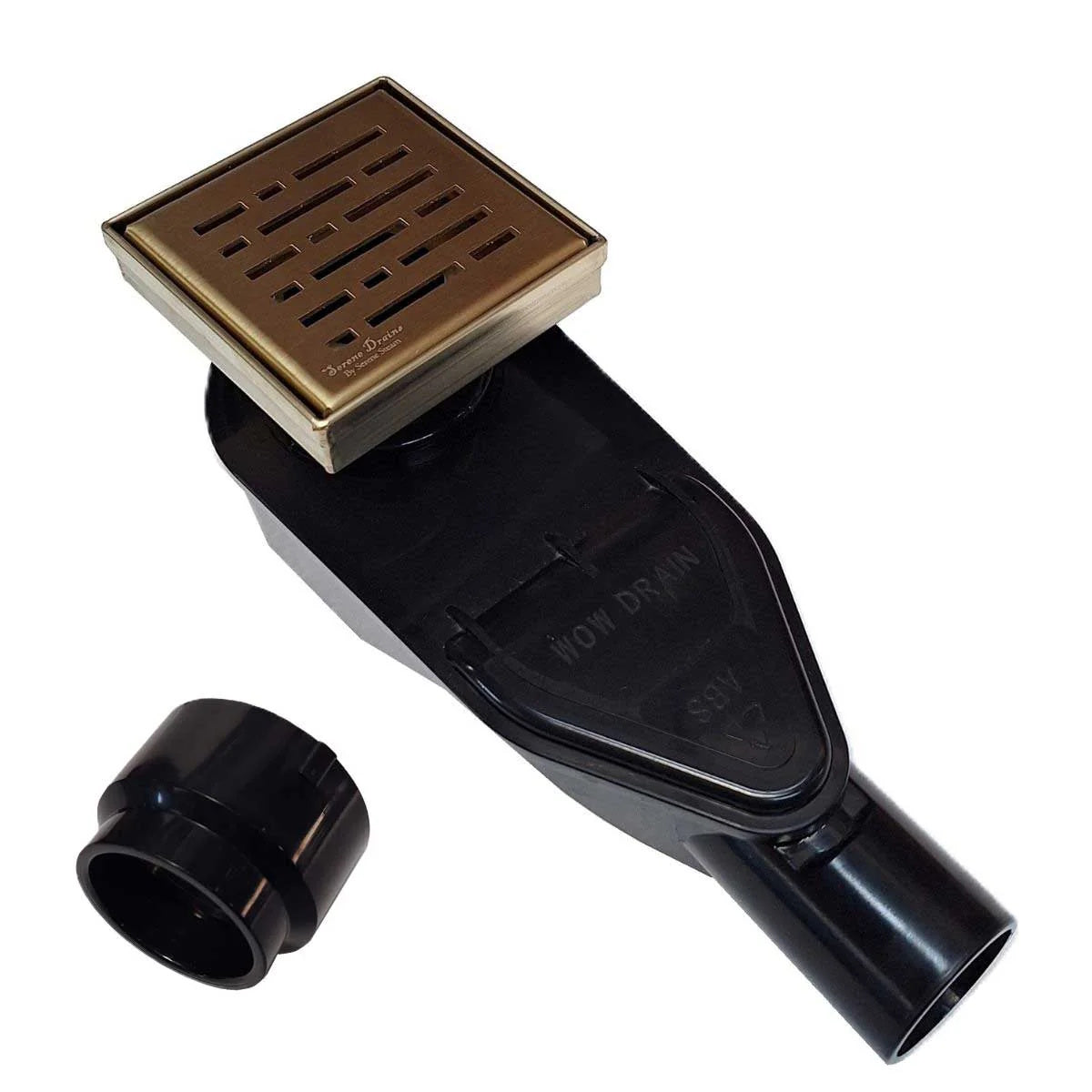

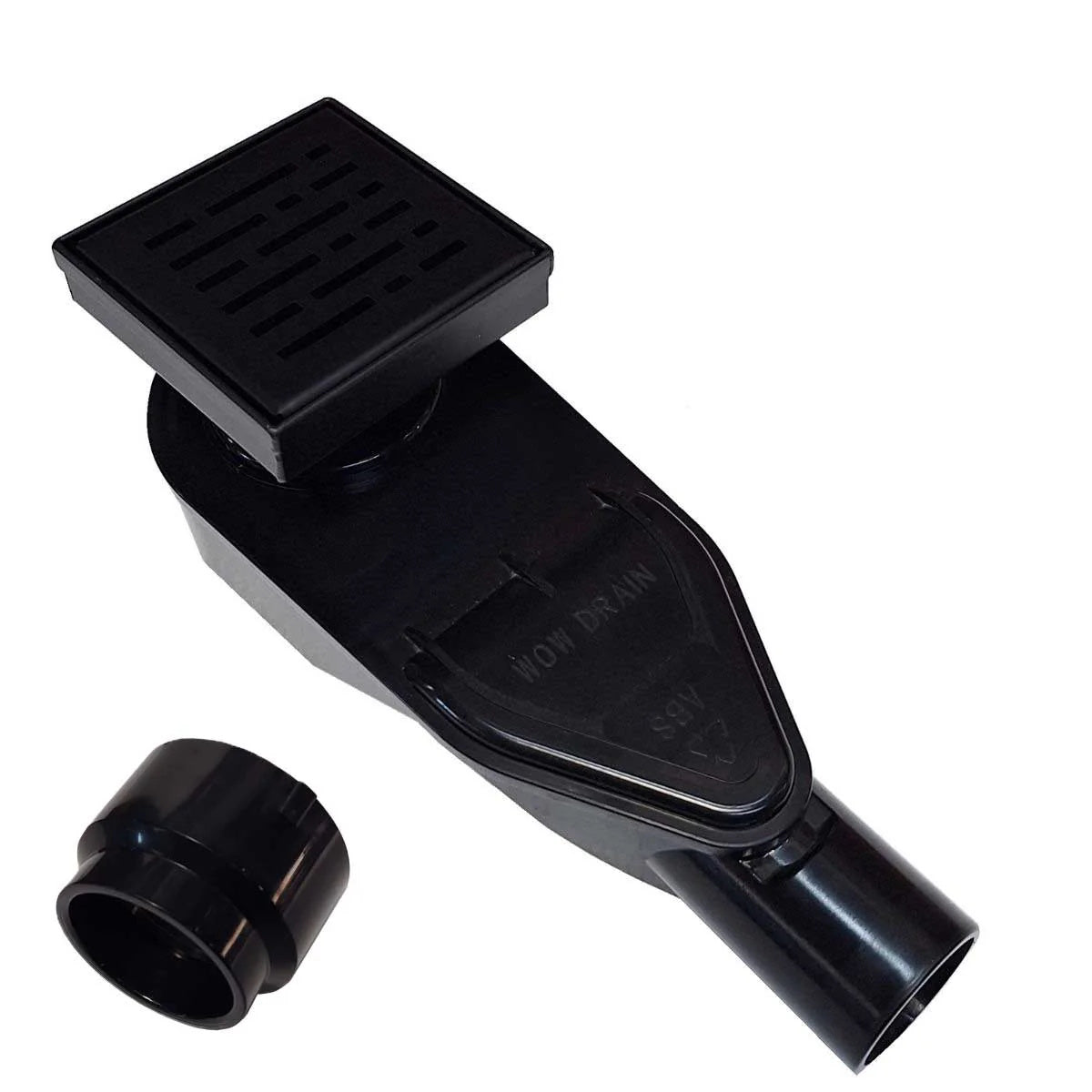

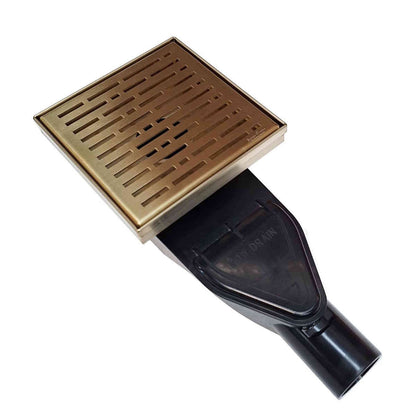

ABS Low-Profile Horizontal Side Discharge Drain Reducer for PVC Base Pipe & P-Trap, with Square Shower Drain
The SereneDrains Square Shower Drain Kit with ABS Low-Profile Horizontal Side Discharge Reducer is designed for shower installations where a traditional vertical outlet isn’t possible. Ideal for slab foundations, remodels, and shallow floor assemblies, it allows you to install a premium square shower drain without relocating existing plumbing.
This bundle includes a heavy-duty ABS horizontal outlet reducer paired with a 4" or 6" stainless steel designer square shower drain, making it a practical solution for low-profile installations with limited vertical clearance.
✓ In Stock and Ready to Ship ✓ Free Hair Trap Included with This Bundle
How the Horizontal Side Discharge Reducer Works
The ABS horizontal side discharge reducer connects directly to a standard PVC base pipe and P-trap, converting a vertical drain outlet into a horizontal discharge. This simplifies installation, reduces demolition, and lowers renovation costs—while maintaining proper slope and reliable drainage performance.

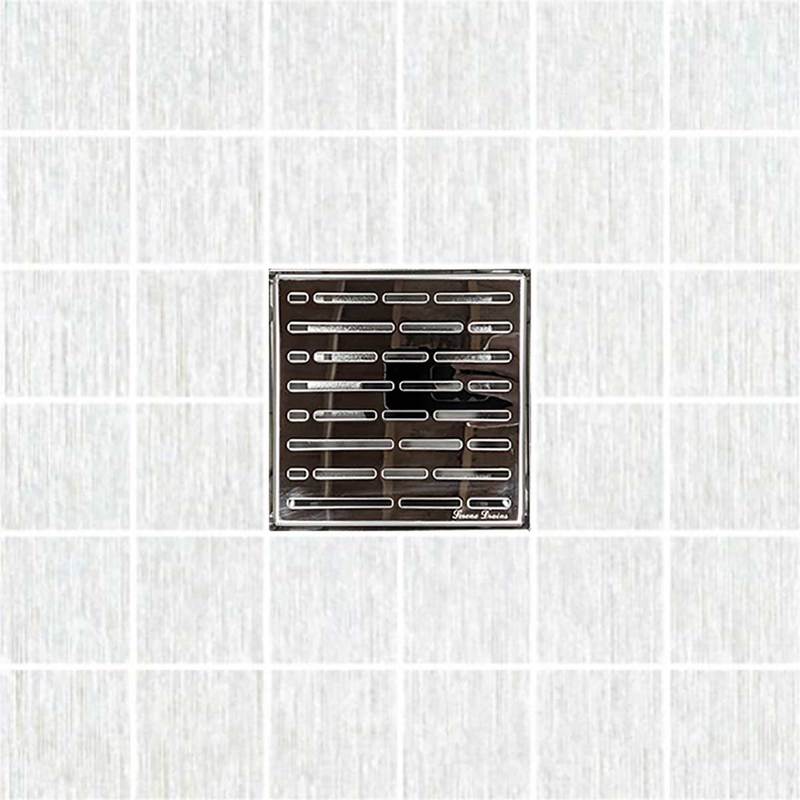

Designer Square Shower Drain Included
Paired with the reducer is a SereneDrains stainless steel square shower drain, designed to deliver both performance and refined aesthetics. The architectural decorative grate creates a modern focal point while ensuring efficient water evacuation.
Crafted from premium 304 stainless steel, the drain is corrosion-resistant and built to perform in high-moisture environments. Its low-profile, flush design provides a smooth, trip-free surface—ideal for curbless, minimalist, and contemporary shower designs.
Available Finishes: Matte Black · Satin Gold · Brushed Nickel · Matte White
Technical Specifications
Drain Material
16-gauge 304 Stainless Steel
Adapter Material
Heavy-Duty ABS Plastic
Drain Sizes
Approx. 4" × 4" or 6" × 6" (based on selection)
Outlet Diameter
2" vertical outlet with horizontal conversion
Tile Compatibility
Up to 10 mm tile depth (14 mm lip)
Flow Rate
6.36 – 7.92 GPM (0.4 – 0.5 L/s)
Key Benefits
Avoid Concrete Cutting: Connect horizontally to existing waste lines without jackhammering slabs or opening ceilings.
Ideal for Slab-on-Grade Construction: Perfect for homes with plumbing embedded in concrete.
Supports Curbless & Low-Profile Showers: Enables ADA-friendly and zero-threshold designs.
Bypasses Structural Obstacles: Routes drainage around joists, beams, and post-tension cables.
Protects Embedded Utilities: Avoids penetrating floors with radiant heating, electrical conduits, or plumbing.
Flexible Drain Applications: Works with square point drains and wall-adjacent linear drains.
Code-Compliant Design: Maintains proper slope for reliable drainage and inspections.
Condo & Multi-Unit Ready: Ideal where slab penetration is restricted by HOA or building regulations.
What’s Included
Stainless steel square drain body
Decorative stainless steel square grate
Hair trap
Grate removal key
Waterproofing membrane sheet for drain flange
Installation instructions
Note: The ABS horizontal side discharge reducer is also compatible with other SereneDrains square and linear drains, allowing maximum flexibility for custom shower designs.
