Brushed Nickel Tile Insert Linear Drains with Horizontal Side Outlet Discharge

$168.00 USD

Sale Sold out

Shipping calculated at checkout.

Size 16 Inch 24 Inch 30 Inch 35 Inch 39 Inch 47 Inch 59 Inch 72 Inch 90 Inch

Quantity

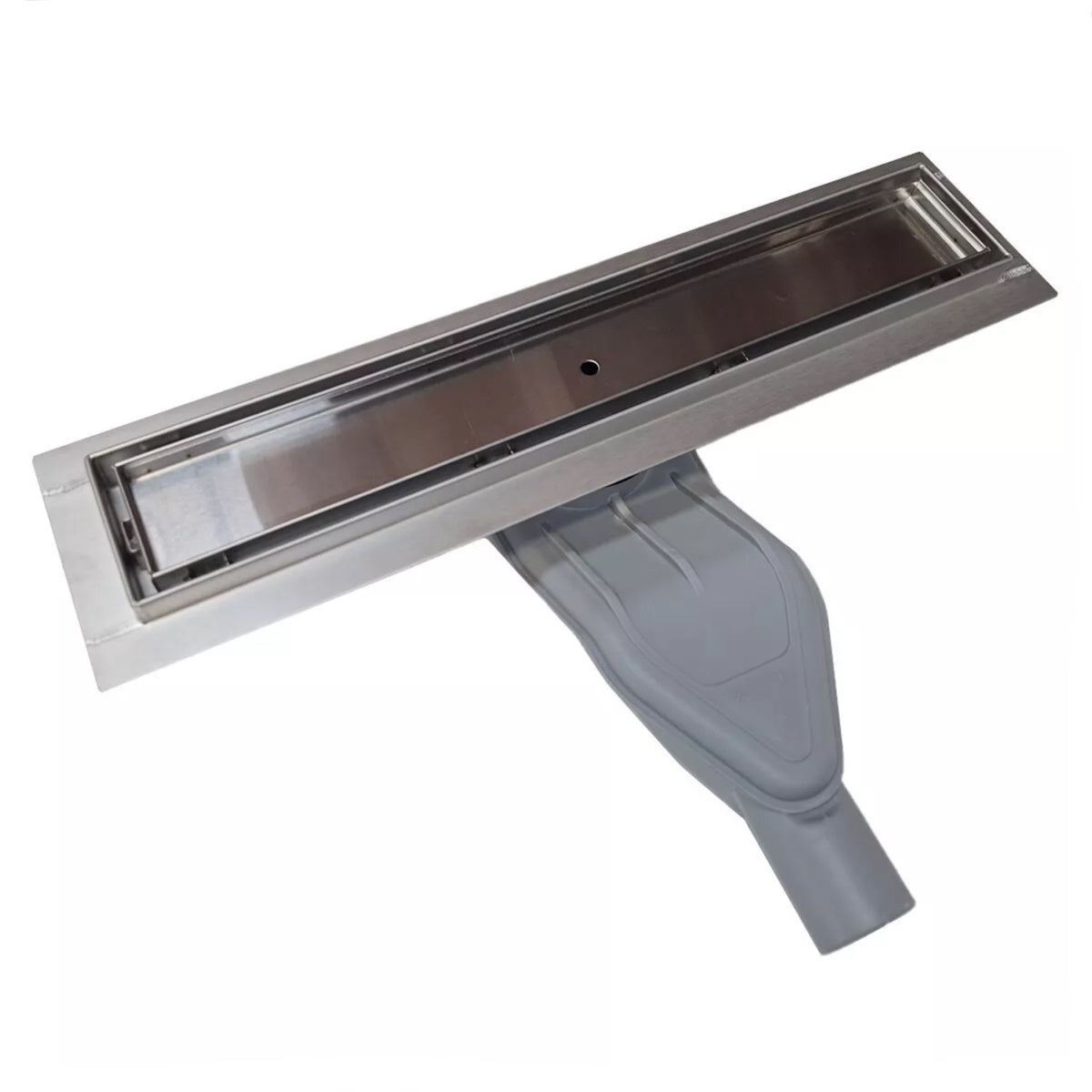

Brushed Nickel Tile Insert Linear Drains with Horizontal Side Outlet Discharge Converter

Opt for a contemporary shower look with a tile insert linear drain. Also known as infinity drains or tile-in linear drains, they blend seamlessly with the surrounding tile for a sleek and functional design.

SereneDrains tile insert drains boast a smart design that ensures effortless installation. The flange body edge design allows you to rest the flange on the floor edge, making installation easy with all types of waterproofing: hot mop, liquid membranes, sheet membrane, etc. Also featuring a pre-slope channel with a width of 2 3/4" (70 mm) for optimal water drainage and crafted from durable 16-gauge 304 stainless steel, these drains offer both durability and a modern design for a superior shower experience.

Available in Matte Black, Satin Gold, Brushed Nickel, and Matte White.

Drain Includes: stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.

Converter Includes: base discharge, rubber fitting and extension fitting (to increase drain connection height when necessary). This drain with our side outlet converter set will save you $40.99.

Drain Features:

16 gauge 304 stainless steel Brushed Nickel finish.
Superior quality laser cut electro-polish finish.
Bodies are fully welded and leak tested prior to dispatch.
2 Inch diameter central vertical outlet.
Designed to be installed into any 2" shower drain flange.
Compatible with tiles up to 10mm depth (14mm lip).
Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
Pre-Slope channel. Channel width: 2 3/4" (70 mm).
Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

Advantages of Horizontal Side Discharge Outlet Shower Drains

Relocating a shower drain can be challenging and costly. Traditional methods often involve extensive demolition and re-coring of concrete. To address these issues, a horizontal drain outlet has been developed. This innovation allows the drain to connect to existing plumbing away from the new drain location, significantly reducing mess, demolition, and costs.

Space Efficiency: Perfect for bathrooms with limited floor thickness, such as in older homes or buildings with shallow floor cavities.
Flexible Plumbing: Simplifies connections to existing horizontal plumbing, reducing the need for extensive modifications.
Improved Water Drainage: Efficiently handles a larger volume of water, preventing pooling.
Better Slope Management: Allows the shower floor to have a single slope toward the drain, simplifying design and construction.
Enhanced Accessibility: Ideal for walk-in showers and barrier-free environments.
Reduced Clogging: Designed to minimize the likelihood of clogs and make them easier to clear.
