SereneDrains Satin Gold Linear Drains with Horizontal Side Outlet Discharge

$268.00 USD

Sale Sold out

Shipping calculated at checkout.

Size 16 Inch 24 Inch 30 Inch 35 Inch 39 Inch 47 Inch 59 Inch

Quantity

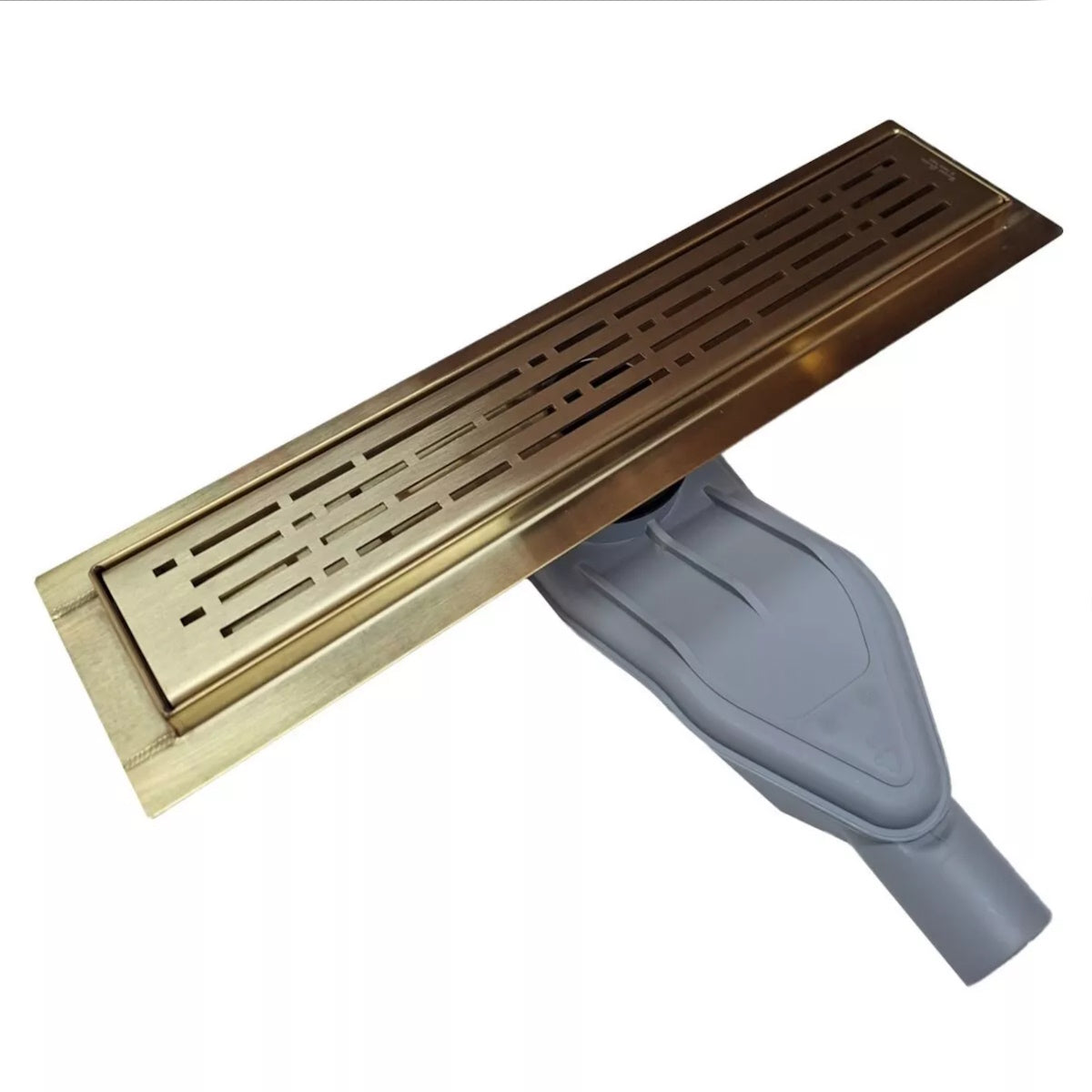

SereneDrains Broken Lane Design Luxurious Satin Gold Stainless Steel Linear Shower Drains with Horizontal Side Outlet Discharge Converter

The SereneDrain Broken Lane design drain in Satin Gold Stainless Steel combines luxury with functionality, making it a perfect addition to any bathroom. The unique Broken Lane pattern, featuring intermittent gaps, ensures efficient water drainage while adding a beautiful visual element. Made from high-quality brushed 306 stainless steel, it guarantees durability and prevents debris blockage for a clean shower environment. Installation is effortless with the flange body edge that accommodates all standard waterproofing methods. Additionally, the pre-slope channel of 2 3/4" (70 mm) width is ideal for optimal drainage.

Available in Polished Stainless, Matte Black, Satin Gold, Brushed Nickel, and Matte White.

Drain Includes: stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.

Converter Includes: base discharge, rubber fitting and extension fitting (to increase drain connection height when necessary). This drain with our side outlet converter set will save you $40.99.

Drain Features:

16 gauge 304 stainless steel Satin Gold finish.
Superior quality laser cut electro-polish finish.
Bodies are fully welded and leak tested prior to dispatch.
2 Inch diameter central vertical outlet.
Designed to be installed into any 2" shower drain flange.
Compatible with tiles up to 10mm depth (14mm lip).
Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
Pre-Slope channel. Channel width: 2 3/4" (70 mm).
Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

Approximate Dimensions:

Length: 16" (400mm) | Intake: 10.44 sq. in.
Length: 24" (600mm) | Intake: 15.66 sq. in.
Length: 30" (762mm) | Intake: 19.94 sq. in.
Length: 35.43" (900mm) | Intake: 23.56 sq. in.
Length: 39.37" (1000mm) | Intake: 26.47 sq. in.
Length: 47.25" (1200mm) | Intake: 27.72 sq. in.
Length: 59.05" (1500mm) | Intake: 39.1 sq. in.

Advantages of Horizontal Side Discharge Outlet Shower Drains

Relocating a shower drain can be challenging and costly. Traditional methods often involve extensive demolition and re-coring of concrete. To address these issues, a horizontal side outlet drain converter has been developed. This innovation allows the drain to connect to existing plumbing away from the new drain location, significantly reducing mess, demolition, and costs.

Space Efficiency: Perfect for bathrooms with limited floor thickness, such as in older homes or buildings with shallow floor cavities.
Flexible Plumbing: Simplifies connections to existing horizontal plumbing, reducing the need for extensive modifications.
Improved Water Drainage: Efficiently handles a larger volume of water, preventing pooling.
Better Slope Management: Allows the shower floor to have a single slope toward the drain, simplifying design and construction.
Enhanced Accessibility: Ideal for walk-in showers and barrier-free environments.
Reduced Clogging: Designed to minimize the likelihood of clogs and make them easier to clear.
