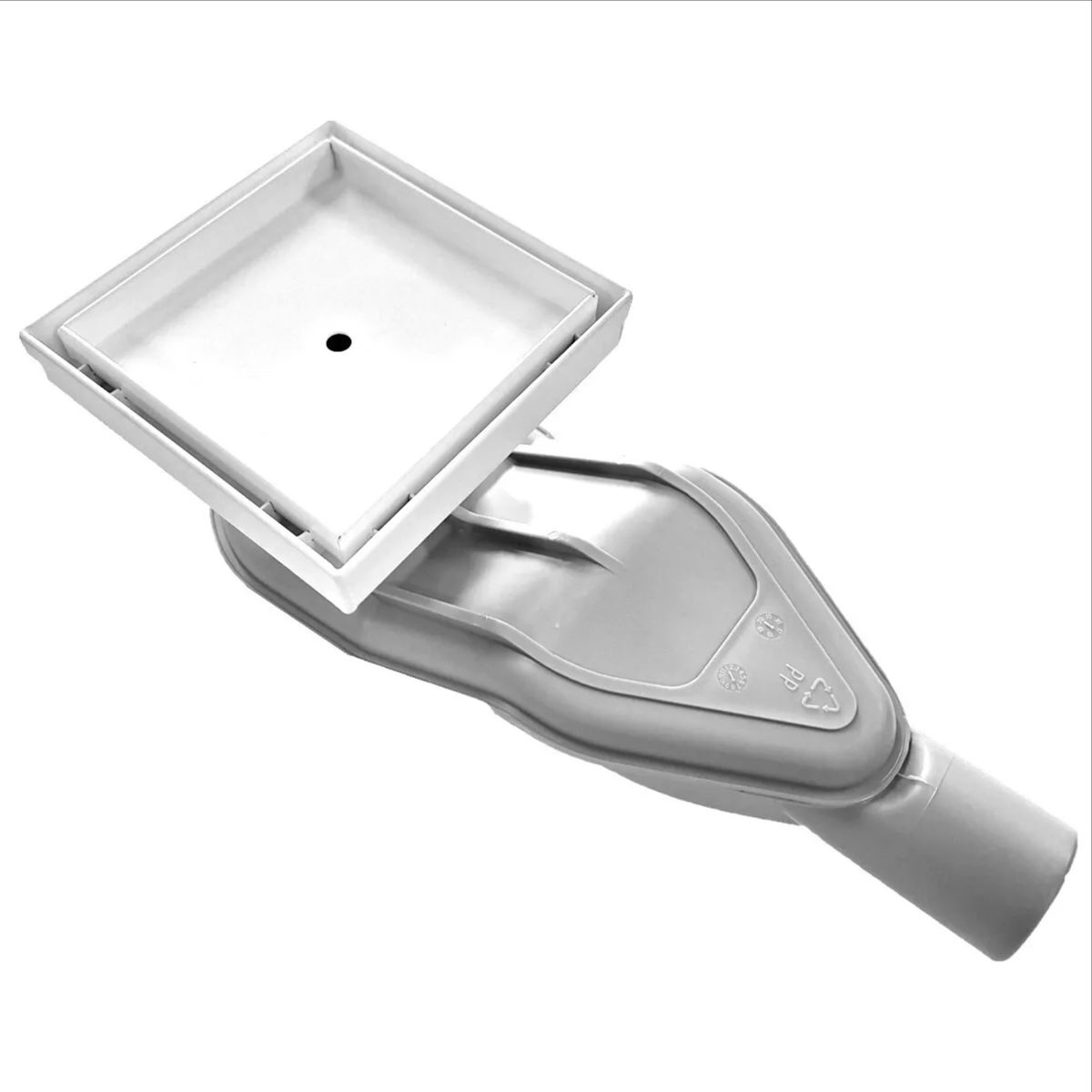

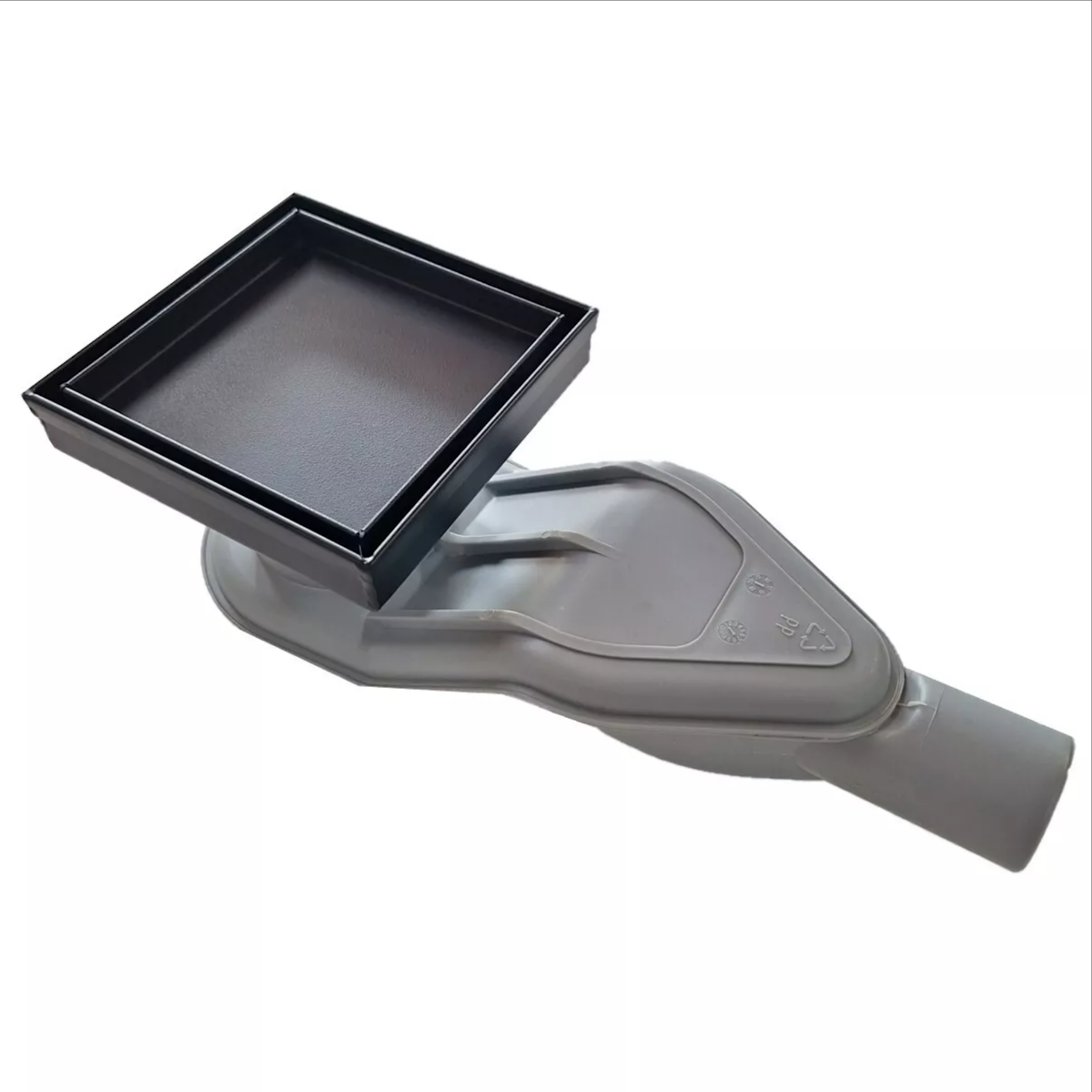

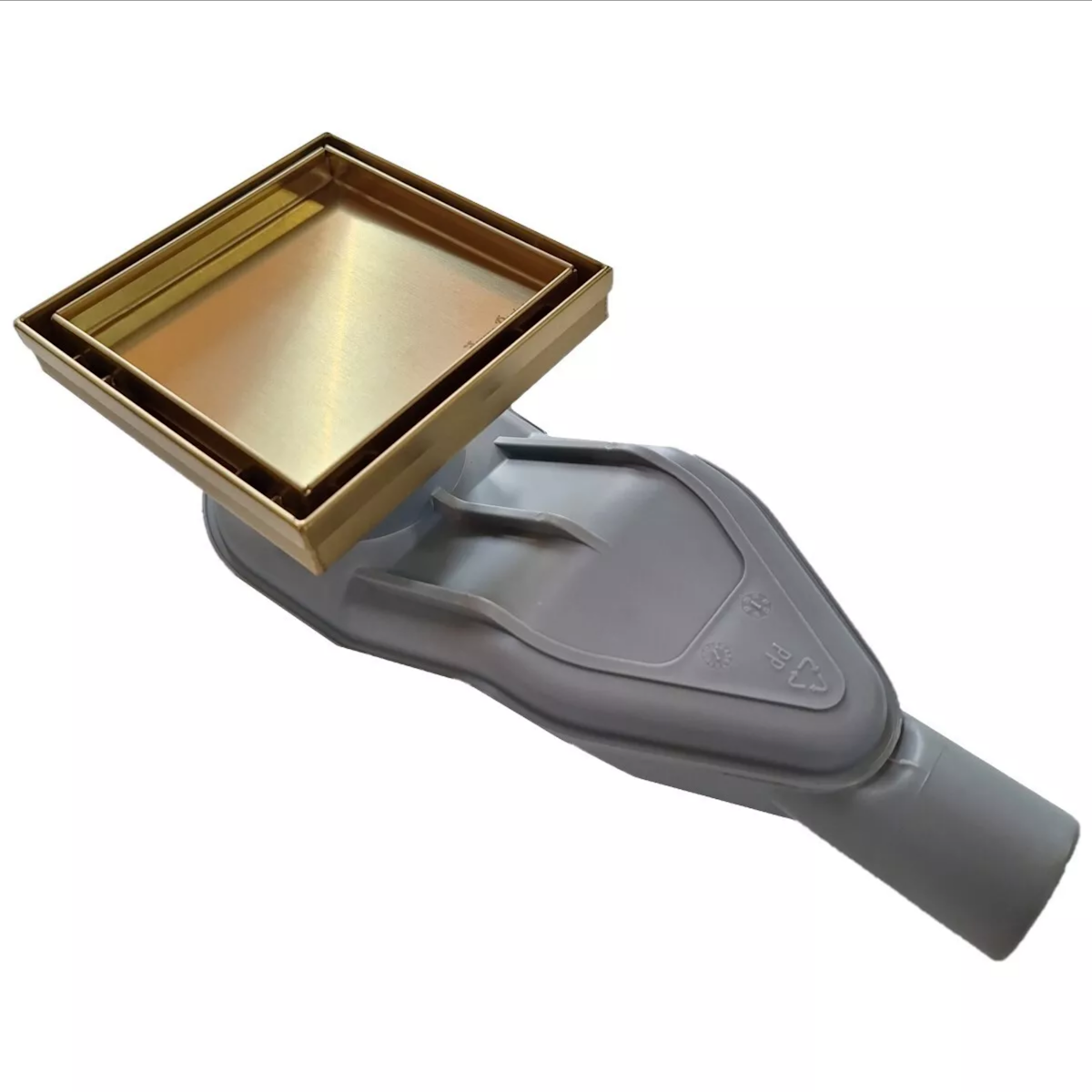

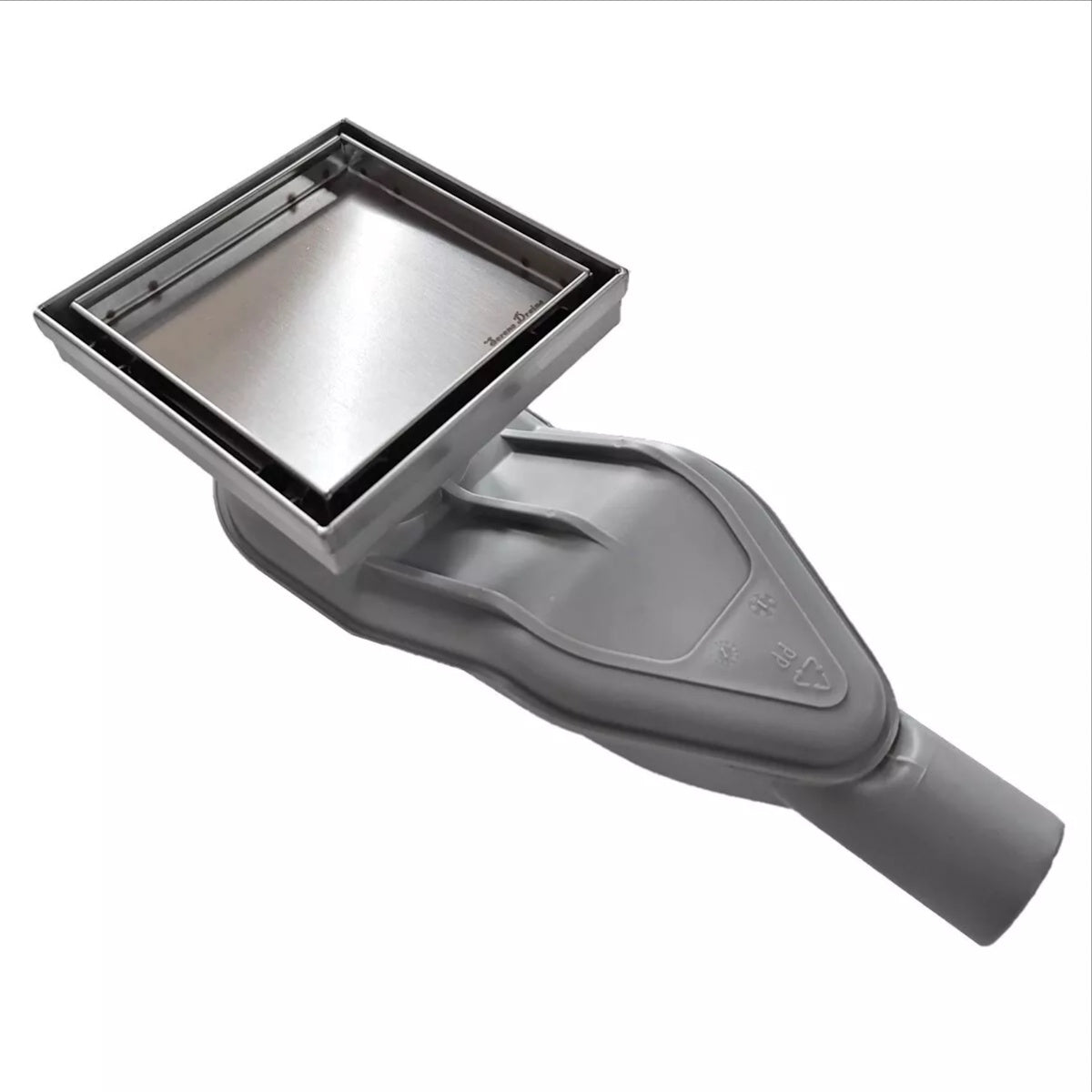

This low-profile horizontal side outlet adapter is designed for installations where vertical clearance is limited. It connects to a standard 2" vertical drain outlet and discharges water through a 1.5" horizontal side outlet, allowing square or linear shower drains to be installed when a straight-down connection isn’t possible.
The adapter is bundled with a SereneDrains 5-inch tile insert square drain made from 304 stainless steel. The tile-insert cover allows the floor tile to sit flush inside the drain, creating a clean, concealed look while maintaining proper drainage.
Available finishes: Matte Black, Satin Gold, Brushed Nickel, Matte White.

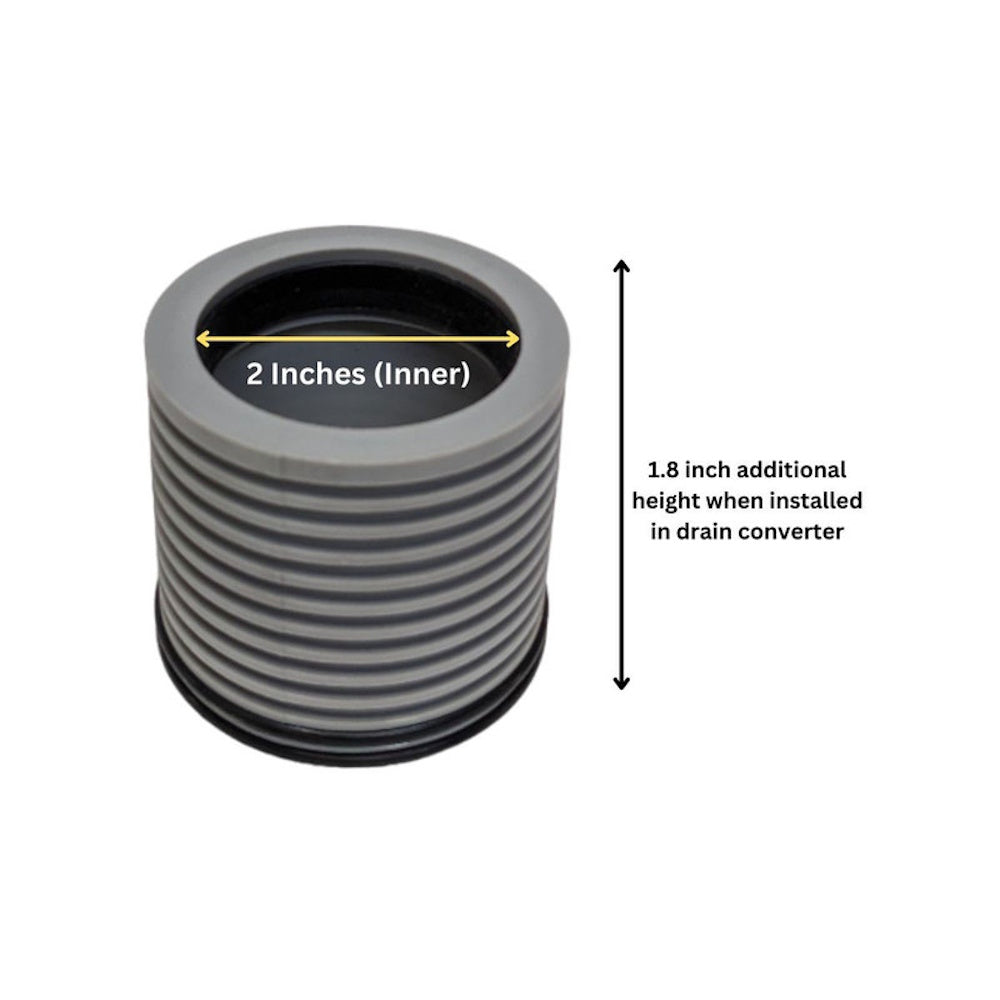

Optional extension fitting (used only if additional connection height is needed)
Why Use a Horizontal Side Outlet Drain
Connects to existing plumbing when the drain pipe or P-trap is offset
Ideal for slab foundations, second-story bathrooms, and remodels with limited access below the floor
Tile-in design blends cleanly into the shower floor
Designed to handle normal shower flow and reduce standing water
Supports curbless showers and large-format tile layouts
Removable cover and built-in hair trap for easy cleaning
Allows a single-slope shower floor toward the drain
Tile Insert Square Drain Features
16-gauge SS304 stainless steel construction (body and cover)
Corrosion- and rust-resistant
Compatible with hot-mop, liquid membranes, sheet membranes, and vinyl liners
Fully welded and leak-tested
Folded (not welded) frame for added strength and comfort underfoot
No plastic parts
Screw-free design
Technical Specifications
Vertical inlet: 2" (female / inner diameter)
Horizontal outlet: 1.5" side discharge
Flow rate: 6.36–7.92 GPM (US) / 0.4–0.5 L/s
Tile thickness compatibility: up to 10 mm (14 mm lip)
No special cleaning required
Note: This side outlet adapter is compatible with other SereneDrains square and linear shower drains.
